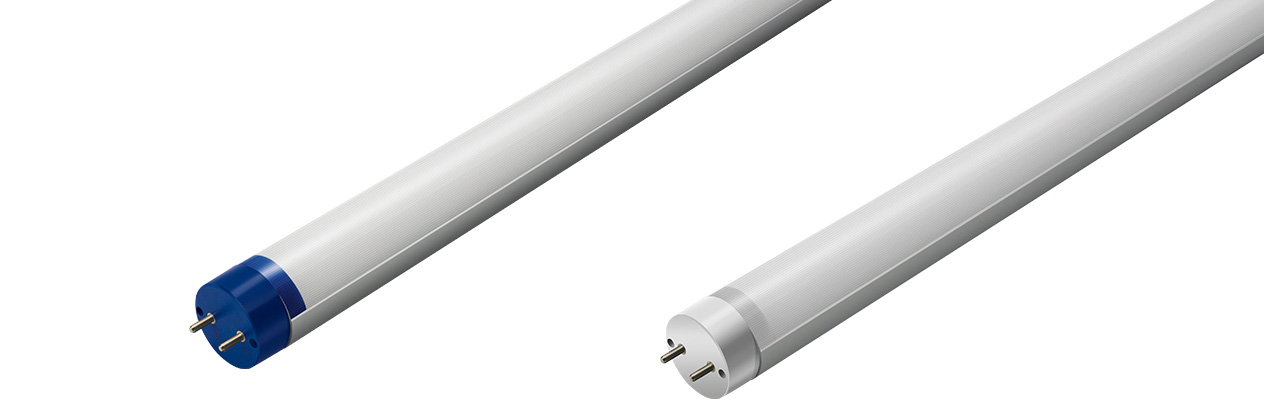

High lumen output, high quality led tube, up to 110lm/w & 140lm/w.
PC cover with D shape aluminum heat sink inside, double insulation, total 0 risk for electric shock.
Product description:
High lumen output, high quality led tube, up to 110lm/w & 140lm/w.
PC cover with D shape aluminum heat sink inside, double insulation, total 0 risk for electric shock.
Three modes, KVG&EVG compatible or 100-240V power connected directly.
input voltage: AC100-240V
material: ALL PC outside + Aluminum inside
correlated color temperature: 3000K-6000K
certification：CE
Key Features:

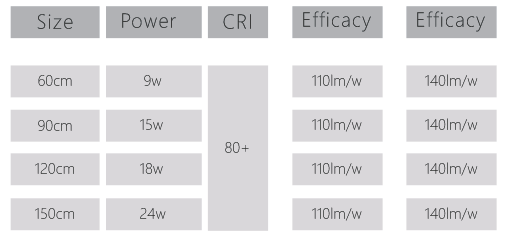

size
photometric
install
package
video
Installation instructions:
Method A： Work with magnetic ballast
Connect with Magnetic ballast:
1.Turn off the power
2.Remove the fluorescent tube
3.Install ARK led tube in one end
4.Turn on the light
If ballast broken, can rewiring AC96-265V connect directly
Method B：AC220-240V Connect Directly:
1.Turn off the power
2.Take out the ballast and starter,rewiring
3.AC 96-265V connect directly
4.Turn on the light.
Interested in our products, just feel free to contact us!
